Benefited from over 30 years experience in membrane R&D and manufacturing, Supratec is providing membrane with extremely high porosity, which leads to a high flux. the pure water flux of fibers can reach 3000LMH/bar (20°C), which fully improves the adaptability of pressure ultrafiltration to a variety of water and wastewater. Hence less membrane and smaller footprint is needed.
MBR SYSTEMS

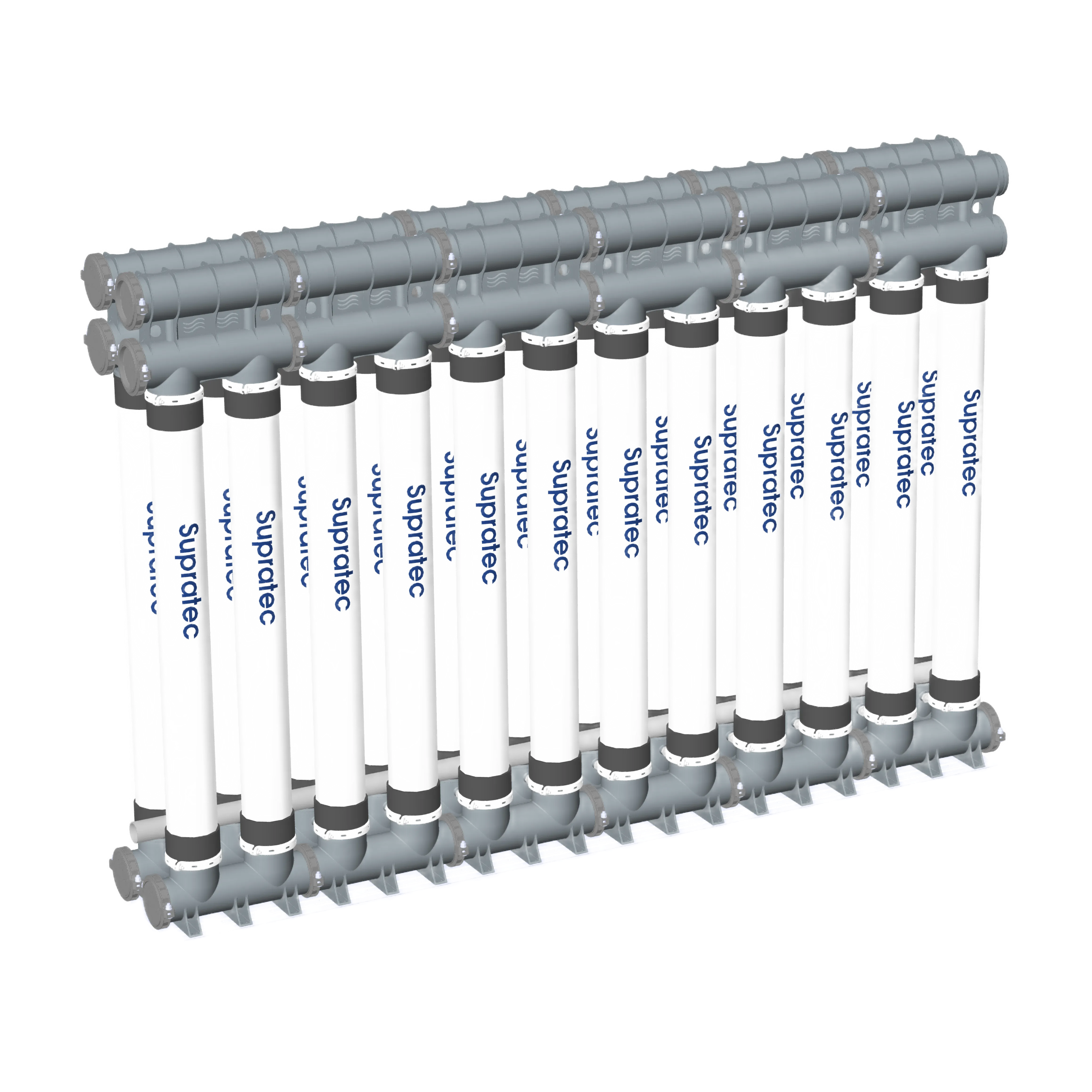

Pressurized Hollow Fibermembrane module
The most robust pressurized UF module as a new generation

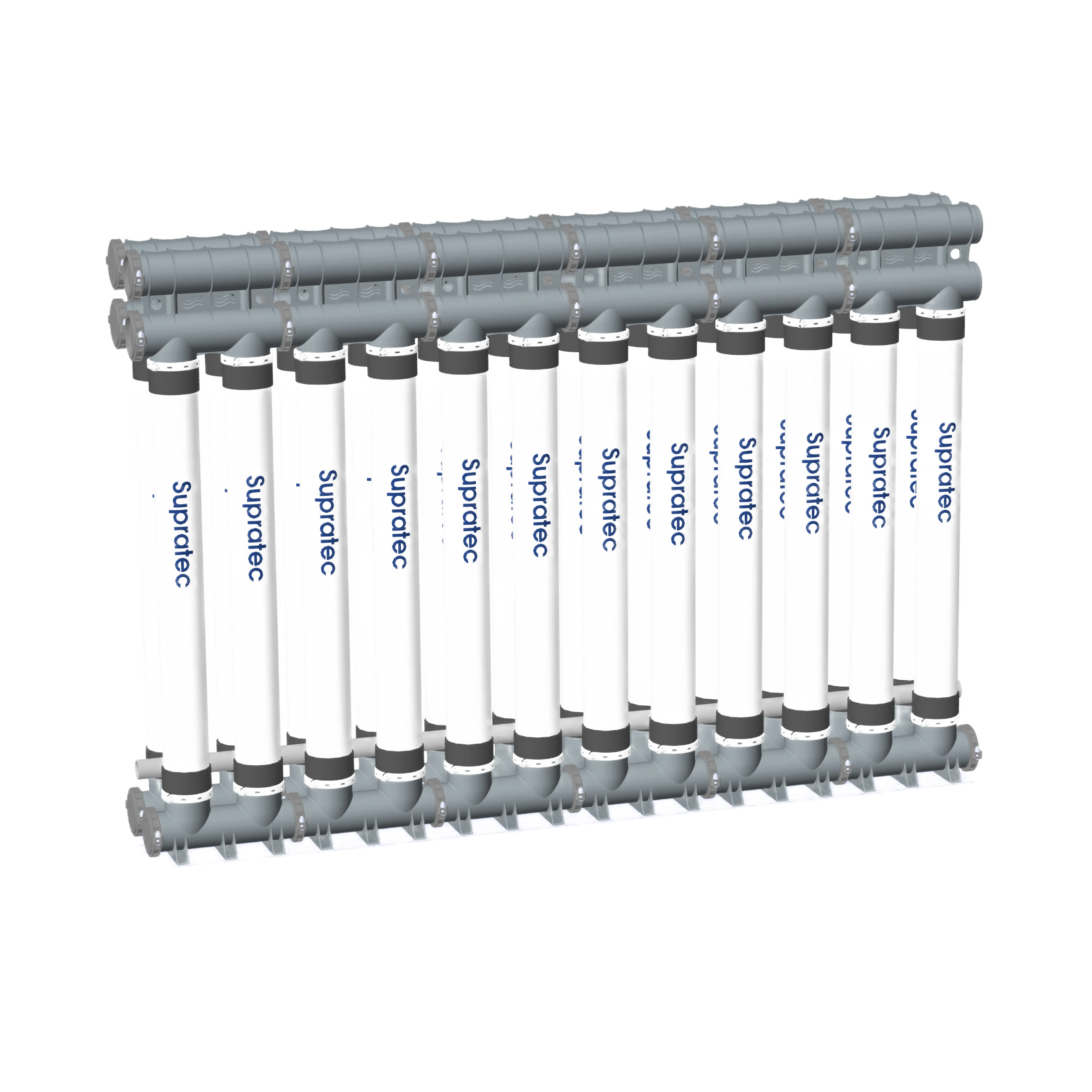

Supratec® HP2580
Pressurized Hollow Fiber Membrane Module
HP2580 is made of braid supported proprietary polyvinylidene fluoride (PVDF) hollow fiber ultrafiltration membrane with a nominal pore size of 0.03 µm. This product is made of strong and durable braided hollow fibers without any breakage (>600N). All fibers are made in Germany with a typical German Industry 4.0 mode production lines.
Designed with reinforced PVDF hollow fiber, high-flux performance, and modular operation, our membrane solutions help reduce operating costs, simplify maintenance, and deliver stable filtration quality for industrial and municipal water treatment projects.

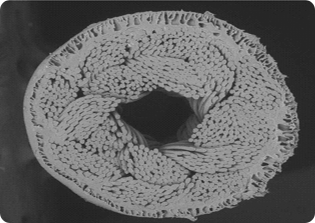

Supported fibers are virtually unbreakable
Made-in-Germany quality
Waste discharge reduced 50%
SS up to 1000mg/L
Due to the single end potting structure, HP2580 could dramatically improves the tolerance of solid load inside membrane shell. Consequently, less pretreatment is required and less wastewater is discharged. Furthermore, single end potting could help a better air distribution during aeration for a more effective fouling control.
Most of pressurized UF product is using self supported membrane, whose peeling strength is only 8 to 12 N per fiber, which could be broken easily during air scoring and high loading operation. While Supratec HP2580 is using reinforced membrane, same as MBR, so it will never be broken or twisted and become a trouble free UF product for a longer service life.
Innovation Applications
Sewage Reuse
Application Area
Much higher recovery rate can be achieved, 50% less discharge, and it will release your suffering from fluctuated feeding quality, without coagulant dosing limitation.
